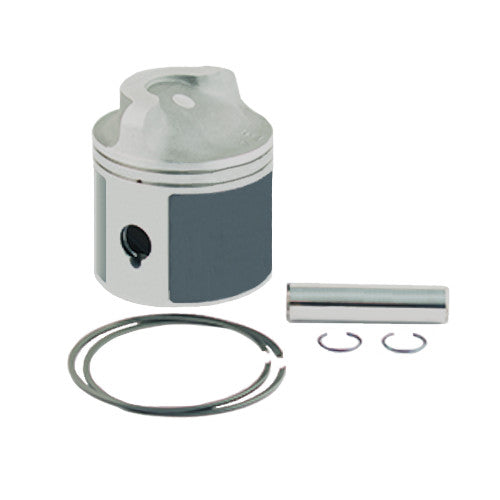

Piston Kit, Cast Bottom Guided - Chrysler / Force 40-150hp, Sport Jet 90-120hp

$79.99
Shipping calculated at checkout.
SKU: 11-11-20500
Size

Condition: New

Availability: In Stock

Delivery and Shipping

Most orders placed before 11am EST Monday-Friday are shipped same day. Orders placed after this time may ship same day or the following business day. Estimated delivery dates are shown with the shipping options in the checkout. If we cannot ship your order within the normal processing time, we will reach out same day (Monday-Friday). Additional shipping information can be found HERE.

Cast Piston Kit

This piston kit is for bottom guided engines. If you don't know the exact year of your outboard you can double-check that you have a bottom guided motor by checking the casting number on the side of your rod. Bottom guided motors have 335016-3 or 600-818052 casting numbers. Top guided motors have 640-9612 casting numbers.

Standard Bore Size is 3.375"

This piston kit is available in STD, .010", .020", .030", .040"

This piston was designed with a "floating wrist pin" as used in all newer models. It doesn't matter if your piston had the press-fit pin or was already rebuilt with this later style piston, this piston kit will work the same in your engine with one exception. If your existing piston had a press-fit wrist pin, you must use 131-11-126 wrist pin bearing for the installation of this piston. If your existing piston for replacement uses clips to hold the wrist pin in place, then there is no need to order this additional bearing unless the existing bearing is damaged.

Fits:
Chrysler
115hp 1978-80 4 cyl
135hp 1974-77 4 cyl
140hp 1978-84 4 cyl

Force
40hp 1992-95 X-Flow  2 cyl
40hp 1994-95  2 cyl
50hp 1991-95  2 cyl
70hp 1991-95  3 cyl
90hp 1990-95  3 cyl
120hp 1991-95  4 cyl
150hp 1991-94  5 cyl

Sport Jet
90hp 1993-95
120hp 1991-95

To order, select your desired options, then enter the quantity and click "add to cart".  Most standard and oversize pistons are in stock however some sizes may be on a short backorder from time to time.  Please don't hesitate to contact us for assistance.

Replaces STD Bore: F722015, 700-819005, 700-819005A5, 700-819005A8, 700-819005A11, 700-834800A1, 700-834800A4, F719015, F719015-1, F719015-2, F719015-3, 700-719015-4, 700-820497A1, 700-819690A1, 700-834797A1, 700-834797A4, 700-F691015, 700-834794, 700-834794T, 700-834794T3, 700-819690A4, 700-834803A1, 700-834803A4

Replaces Oversize Bore: 700-819005A6, 700-819005A9, 700-819005A10, 700-819005A12, 700-819005A13, 700-834800A1, 700-834800A2, 700-834800A3, 700-834800A4, 700-834800A5, 700-834800A6, 700-819005, 700-819005A5, 700-819005A7, 700-819005A8, 700-819005A10, 700-819005A11, 700-819005A13, 700-834800A1, 700-834800A3, 700-834800A4, 700-834800A6, 700-819690A2, 700-834797A2, 700-834797A5, 700-819690A3, 700-834797A3, 700-834797A6, FSA691015, 700-834794A1, 700-834794A4, 700-819690A5, 700-834803A2, 700-834803A5, 700-819690A6, 700-834803A3, 700-834803A6
Super: 1-100-205K, 3151PS, 3151P1, 3151P2, 3151P3, 3151P4, 18-4632, 18-4633, 18-4634, V5100, W100-205K

PLEASE NOTE: This item may fit additional models to those listed above. Please DO NOT order based solely on application info above. You MUST compare the OEM number of the part for your engine to those listed above to ensure correct fitment of this part for your application! Failure to order this way will likely lead to the wrong part being ordered!

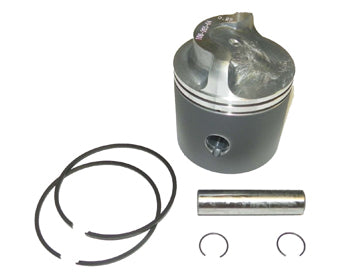

Piston Kit, Cast - Force 40-150hp, Sport Jet 90-120hp

Piston Kit, Cast Bottom Guided - Chrysler / Force 40-150hp, Sport Jet 90-120hp

$79.99

Cast Piston Kit

This piston kit is for bottom guided engines. If you don't know the exact year of your outboard you can double-check that you have a bottom guided motor by checking the casting number on the side of your rod. Bottom guided motors have 335016-3 or 600-818052 casting numbers. Top guided motors have 640-9612 casting numbers.

Standard Bore Size is 3.375"

This piston kit is available in STD, .010", .020", .030", .040"

This piston was designed with a "floating wrist pin" as used in all newer models. It doesn't matter if your piston had the press-fit pin or was already rebuilt with this later style piston, this piston kit will work the same in your engine with one exception. If your existing piston had a press-fit wrist pin, you must use 131-11-126 wrist pin bearing for the installation of this piston. If your existing piston for replacement uses clips to hold the wrist pin in place, then there is no need to order this additional bearing unless the existing bearing is damaged.

Fits:
Chrysler
115hp 1978-80 4 cyl
135hp 1974-77 4 cyl
140hp 1978-84 4 cyl

Force
40hp 1992-95 X-Flow  2 cyl
40hp 1994-95  2 cyl
50hp 1991-95  2 cyl
70hp 1991-95  3 cyl
90hp 1990-95  3 cyl
120hp 1991-95  4 cyl
150hp 1991-94  5 cyl

Sport Jet
90hp 1993-95
120hp 1991-95

To order, select your desired options, then enter the quantity and click "add to cart".  Most standard and oversize pistons are in stock however some sizes may be on a short backorder from time to time.  Please don't hesitate to contact us for assistance.

Replaces STD Bore: F722015, 700-819005, 700-819005A5, 700-819005A8, 700-819005A11, 700-834800A1, 700-834800A4, F719015, F719015-1, F719015-2, F719015-3, 700-719015-4, 700-820497A1, 700-819690A1, 700-834797A1, 700-834797A4, 700-F691015, 700-834794, 700-834794T, 700-834794T3, 700-819690A4, 700-834803A1, 700-834803A4

Replaces Oversize Bore: 700-819005A6, 700-819005A9, 700-819005A10, 700-819005A12, 700-819005A13, 700-834800A1, 700-834800A2, 700-834800A3, 700-834800A4, 700-834800A5, 700-834800A6, 700-819005, 700-819005A5, 700-819005A7, 700-819005A8, 700-819005A10, 700-819005A11, 700-819005A13, 700-834800A1, 700-834800A3, 700-834800A4, 700-834800A6, 700-819690A2, 700-834797A2, 700-834797A5, 700-819690A3, 700-834797A3, 700-834797A6, FSA691015, 700-834794A1, 700-834794A4, 700-819690A5, 700-834803A2, 700-834803A5, 700-819690A6, 700-834803A3, 700-834803A6
Super: 1-100-205K, 3151PS, 3151P1, 3151P2, 3151P3, 3151P4, 18-4632, 18-4633, 18-4634, V5100, W100-205K

Size

  • Standard Bore
  • .010" Oversize
  • .020" Oversize
  • .030" Oversize
  • .040" Oversize
