Piston Kit, Cast - Yamaha 115-225hp w/21.5mm Wrist Pin

$74.89
Shipping calculated at checkout.
SKU: 11-17-27000P
Size
Piston Location
Coating

Condition: New

Availability: In Stock

Delivery and Shipping

Most orders placed before 11am EST Monday-Friday are shipped same day. Orders placed after this time may ship same day or the following business day. Estimated delivery dates are shown with the shipping options in the checkout. If we cannot ship your order within the normal processing time, we will reach out same day (Monday-Friday). Additional shipping information can be found HERE.

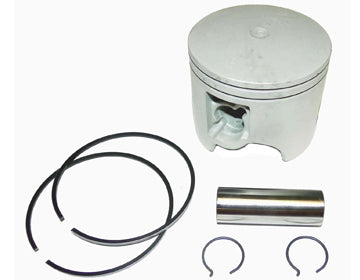

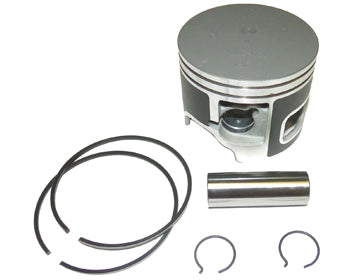

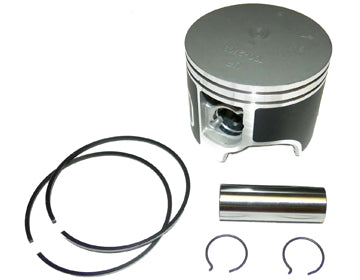

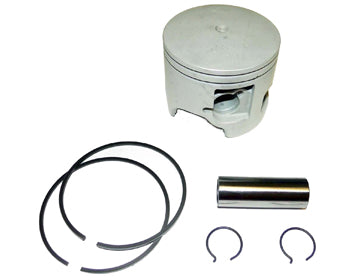

Cast Piston Kit

This is a very high quality cast aluminum alloy piston. This kit comes with the piston, Riken rings, 21.5mm wrist pin and pin clips.

These pistons are available in Port and Starboard in sizes STD, .010", .020", .030" and .040" oversize as well as coated / uncoated options. Please use the dropdowns to select the options you need.

For models with 6E5 connecting rod

Fits:

Yamaha

115hp 1984-92
130hp 1984-92
150hp 1984-92
175hp 1984-92
200hp 1984-91
225hp 1984-91

To order, select your desired options, then enter the quantity and click "add to cart". Most standard and oversize pistons are in stock however some sizes may be on a short backorder from time to time. Please don't hesitate to contact us for assistance.

Replaces: 6G5-11642-00-93, 6G5-11642-00-94, 6K7-11642-01-93, 6K7-11642-01-92, 6K7-11642-00-94, 6K7-11642-00-95, 6K7-11642-01-94, 6G5-11631-00-93, 6K7-11631-01-92, 6K7-11631-01-93, 6K7-11631-00-94, 6K7-11631-00-95, 6K7-11631-01-94

PLEASE NOTE: This item may fit additional models to those listed above. Please DO NOT order based solely on application info above. You MUST compare the OEM number of the part for your engine to those listed above to ensure correct fitment of this part for your application! Failure to order this way will likely lead to the wrong part being ordered!
